915U-2 Force/Startup mapping

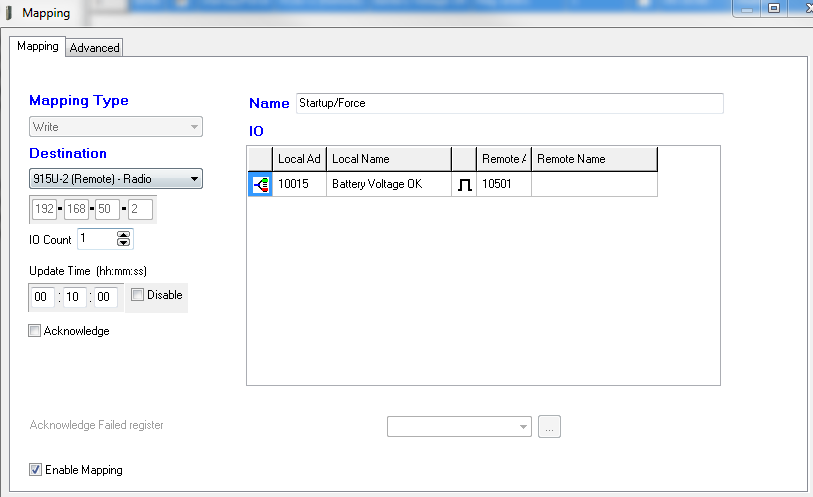

The following application note demonstrates how to configure modules with a Force/Startup poll mapping.

Communications of I/O from remote location back to the Base radio is done on a Change of State (COS) bases as well as a regular update period. The default update period in the module is set to 10 minutes, this means that if the inputs are not regularly changing the Base radio may not get the most up to date status until it either receives a change of state or happens to receive one of the update messages.
